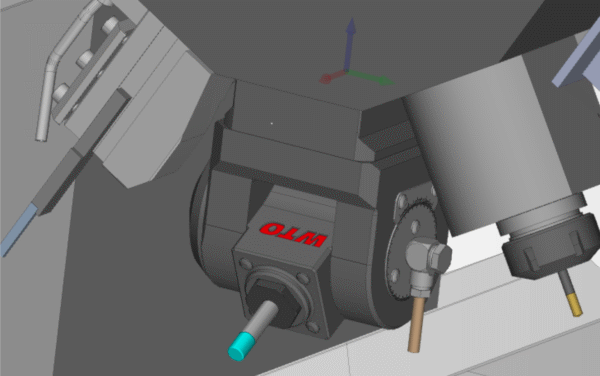

How to Add an Indexable Holder to a Turret in ESPRIT EDGE 2025

In modern CNC programming, accuracy begins long before the first chip falls. It starts with proper digital setup—especially for complex tool assemblies like indexable holders. ESPRIT Edge 2025 offers a streamlined way to simulate these assemblies, ensuring fidelity between your CAM environment and shop floor reality.

This guide walks you through the process of adding an indexable holder to a turret, using adaptive items from ESPRIT’s extensive holder library.

Screenshot 2025-07-02 at 1.02.08 PM

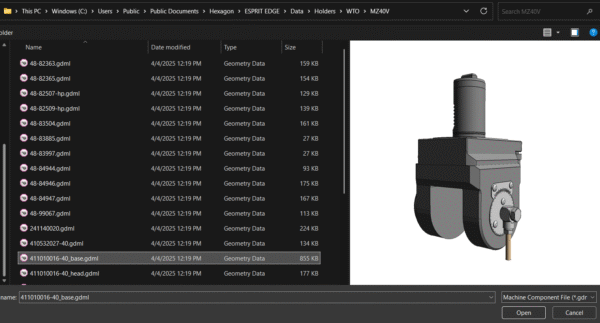

Step 1: Access the Holder Library

Start by accessing ESPRIT's holder library, which can be downloaded from the Products page on the Hexagon ESPRIT website.

Once downloaded, you’ll see the library is organized by manufacturer.

The browser window within ESPRIT allows you to preview each holder and rotate it in 3D space. This avoids guesswork by letting you visually inspect the holder before importing it into your setup.

9624521F-EB1A-40E2-ADFF-66230D9A27BB

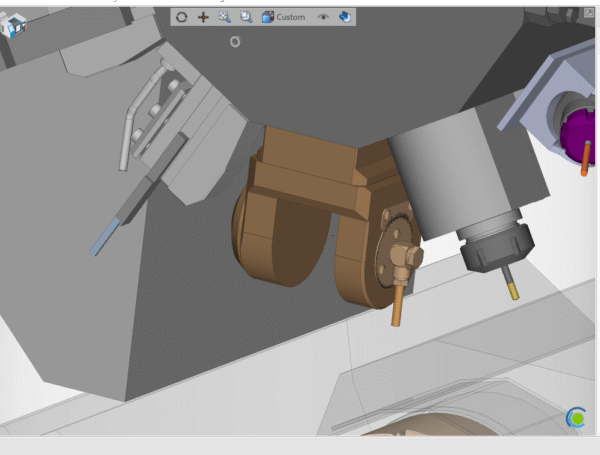

Step 2: Load the Base Element

Once you've selected a holder:

  1. Load the base element into your turret setup.

  2. Use rotation tools to manipulate orientation & translation as needed. You can flip features to opposite sides to match real-world configurations.

  3. Confirm the placement by clicking OK.

This adaptive capability mimics physical adjustments to turret-mounted holders.

1CB4A335-2C11-4690-AD83-3736469A54D4

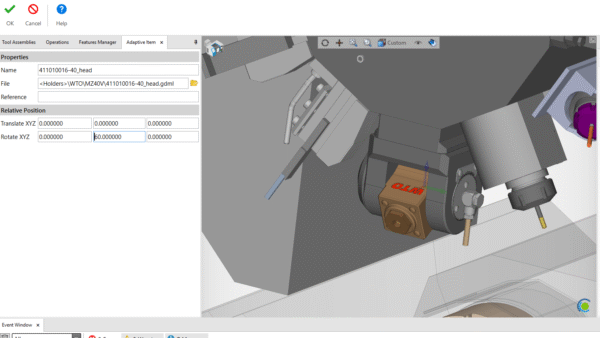

Step 3: Attach the Head Element

Next, you'll attach the head portion of the holder:

  • Locate the attachment point (marked by an origin symbol).
  • Insert the head element at that point.
  • You can then rotate the holder around the Y-axis to match your intended tool angle.

This mirrors real-world adjustments made to adjustable heads.

BF825E78-4495-45B3-BF44-327A720FCD95

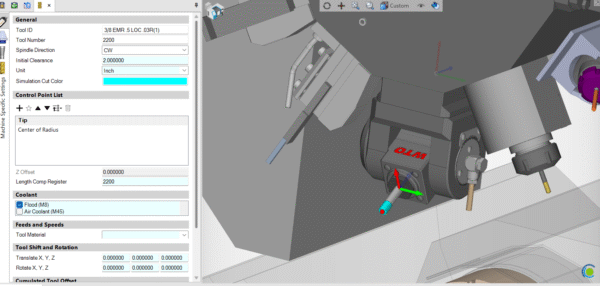

 Step 4: Add a Tool

With the holder fully assembled, you're ready to add a tool:

  • Click into the tool attachment menu and create a tool on the fly.
  • Assign a name and tool number.
  • Alternatively, drag and drop a tool from the Prep Area into position.

This step ensures your virtual setup mirrors your physical machine tool configuration exactly.

A9D9126C-DD33-4D48-B495-EBECA3D97C84

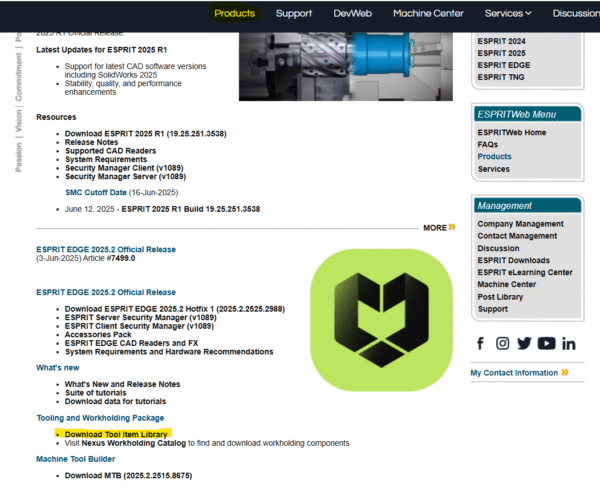

Step 5: Save or Load Custom Holders

If you frequently use a specific setup:

  • Save your configured holder for future reuse.
  • Or, download preset holders with fixed angles directly from ESPRIT’s library.

These are available in the Item Library on the ESPRIT Edge 2025 product page, where you’ll find a wide variety of ready-to-use holder configurations.

88150C04-6BBE-40B5-A77B-EF72147C79C7

Pro Tip

When using indexable holders:

  • Always double-check axis orientation (especially when rotating around Y)
  • Use ESPRIT’s simulation tools to verify reach and clearance
  • Save assemblies to build a reusable digital toolbox for your programming team

Summary

Step  Action
1 Download holder library from ESPRIT Web
2 Load and orient base element
3 Attach and rotate the head element
4 Add or configure a tool
5 Save or reuse holder assemblies
